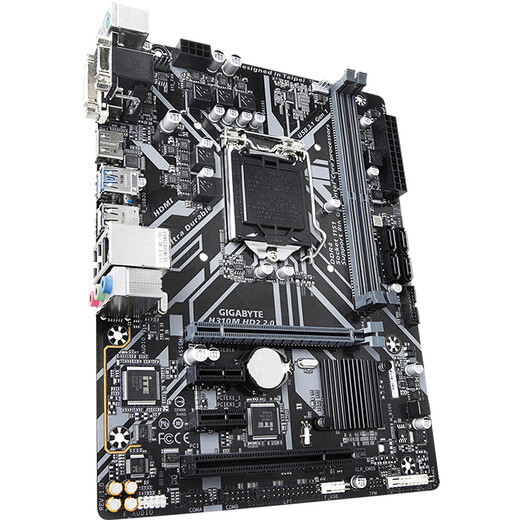

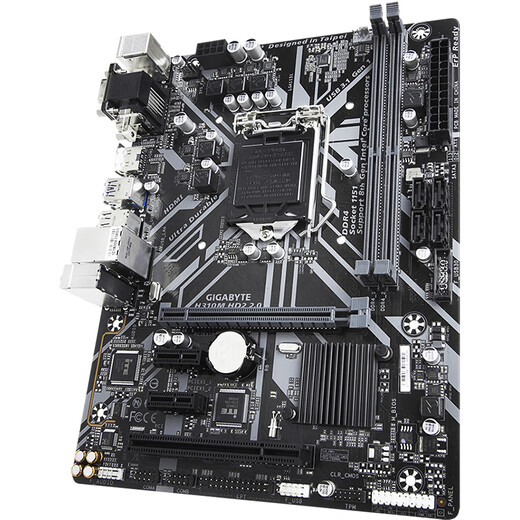

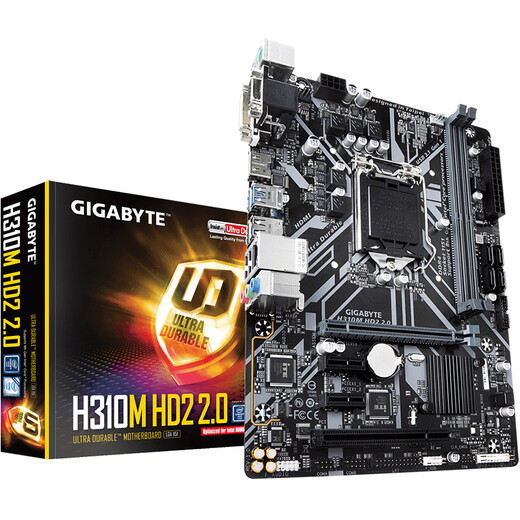

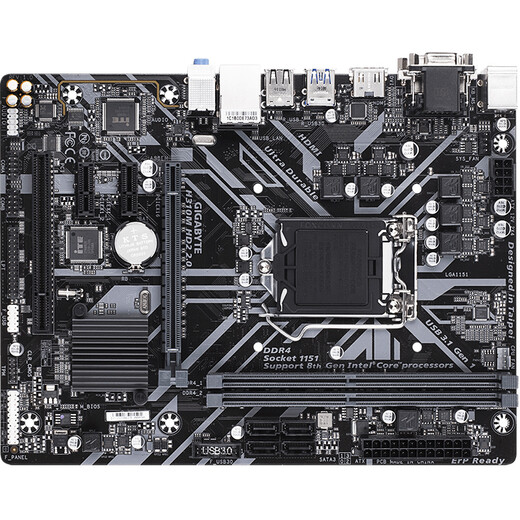

Gigabyte h310m HD2 2.0 "eat chicken" motherboard Intel h310 / LGA 1151

Gigabyte h310m HD2 2.0
Model H310M HD2
Platform Type Intel Platform
Integrated Graphics You Need A Processor With A Built-in GPU
Display Output Interface Yes
Interface Type LGA 11518 Generation
Compatible Family Support For Lga1151 Slot Eighth Generation Processor
Memory Size DDR4
Memory Slots 2 DDR4 DIMM Slots
Memory Standard DDR4 2133
Maximum Memory Capacity 32GB
Dual-channel Support Support
Three Way Support Does Not Support
Multi-graphics Support Does Not Support
PCI Express X16 1
PCI Express X1 2
PCI Slot 1
Disk Array Does Not Support
SATA Interface Scope ≤4
Card Type Realtek ALC887
Number Of Channels 7.1 Channel
Sound Card Features Support For High Definition Audio
NIC Type Realtek GBE Network Chip
The Maximum Network Speed 10M/100M/1000M
Built-in Audio Interface 1 Front Audio Socket
COM Extended Interface 2 On Board Com Sockets
LPT Extension Interface 1 On Board LPT Socket
CPU Fan Socket Team 1
System Fan Socket Team 1
Other Sockets 1 USB 3.1 Gen 1 Socket; 1 USB 2.0 / 1.1 Socket

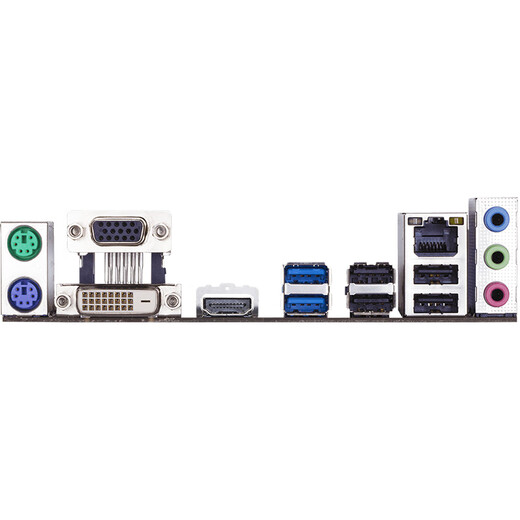

PS/2 1 X PS / 2 Keyboard Connector, 1 X PS / 2 Mouse Connector
VGA Interface 1 VGA Interface
DVI Interface 1 X DVI Interface
HDMI Interface 1 X HDMI Interface
RJ 45 Network Interface 1 X RJ45 Interface
Audio Interface 3 X 3.5mm Interface
Other Interfaces 2 USB 3.1 Gen 1 Interfaces; 4 USB 2.0 Interfaces
Plate Structure M-ATX Compact
Plate Size 24.4cm X 18.5cm
Power Interface 24+8
PCB Specification Small Board
Powered By 5 Phase Power Supply
Hardware Monitoring Voltage Check; Temperature Check; Fan Speed Check; Over Temperature Warning; Fan Fault Warning; Intelligent Fan Control
Characteristic Support App Center; Support Q-flash; Support Xpress Install
