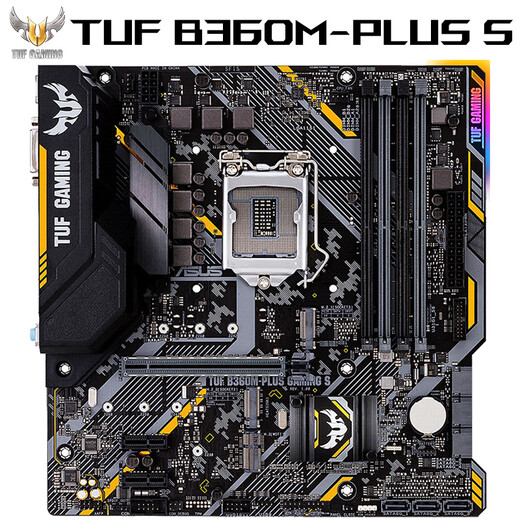

ASUS ASUSTUF B360M-PLUS GAMING S game board supports 9100F/9400F/9500/9700FIntel B360/LGA 1151

ASUS ASUSTUF B360M-PLUS GAMING S game board supports 9100F/9400F/9500/9700FIntel B360/LGA 1151
Technical
Brand ASUS ASUS
Model TUF B360M-PLUS GAMING S
Platform Type Intel Platform
Main/Northbridge Chip B360
Integrated Graphics You Need A Processor With A Built-in GPU
Display Output Interface Have
Interface Type LGA 11518 Generation
Compatible Series Support Intel Socket 1151 Slot,8th Generation Intel Core Processor
Memory Size DDR4
Memory Slot 4 X DDR4
Memory Standard DDR4 2666,DDR4 2133,DDR4 2400
Maximum Memory Capacity 64G
Dual Channel Support Stand By
Three-way Support Not Support
Multiple Graphics Support Not Support
PCI Express X16 1
PCI Express X1 2
IDE No
SATA 6
Disk Array Not Support
SATA Interface Scope 5-8
Sound Card Type Realtek ALC887
Number Of Channels 8
Net Card Type Intel I219V
Maximum Network Speed 10M/100M/1000M
Built-in Audio Interface 1 X Front Panel Audio Interface AAFP
USB Extension Interface Group 3
COM Extension Interface 1 X Serial Port Connection Socket COM
CPU Fan Socket Group 1
S/PDIF Socket 1 X S/PDIF_Out Digital Audio Connection Header
Other Socket 1 X Aura RGB Lamp With Connector; 2 X M.2 Slot, Support Socket 3, M Key,2242/2260/2280 Storage Devices;

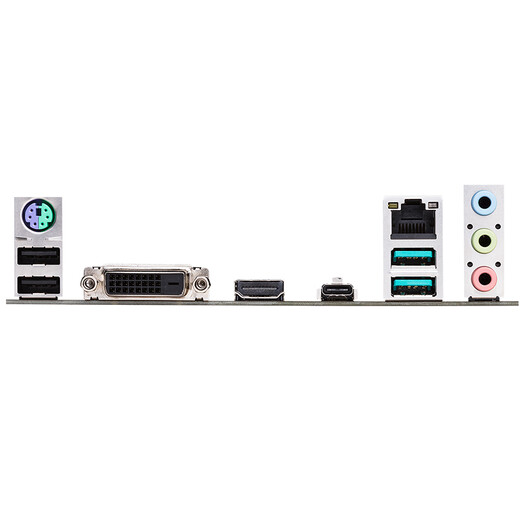

PS/2 1 X PS/2 Keyboard Interface, 1 X PS/2 Mouse Interface
DVI Interface 1 X DVI Interface
HDMI Interface 1 X HDMI Interface
RJ 45 Network Interface 1 X RJ45 Interface
USB 4x USB Interface
Audio Interface Other
Other Interface 1X USB 3.1 Gen 1 Interface USB Type-C Up To 5Gbps
Plate Structure M-ATX
Board Size 9.6" X 9.5" 24.4 Cm X 24.1 Cm
PCB Specification Small Board
BIOS Language More Chinese Words
-
  • Product Code: 8074512
  • Availability: 100
  • US$284.83
  • US$214.26
