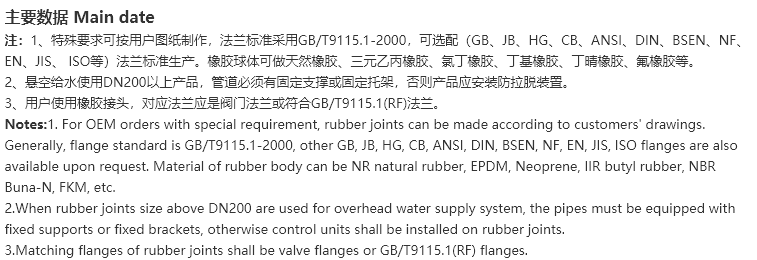

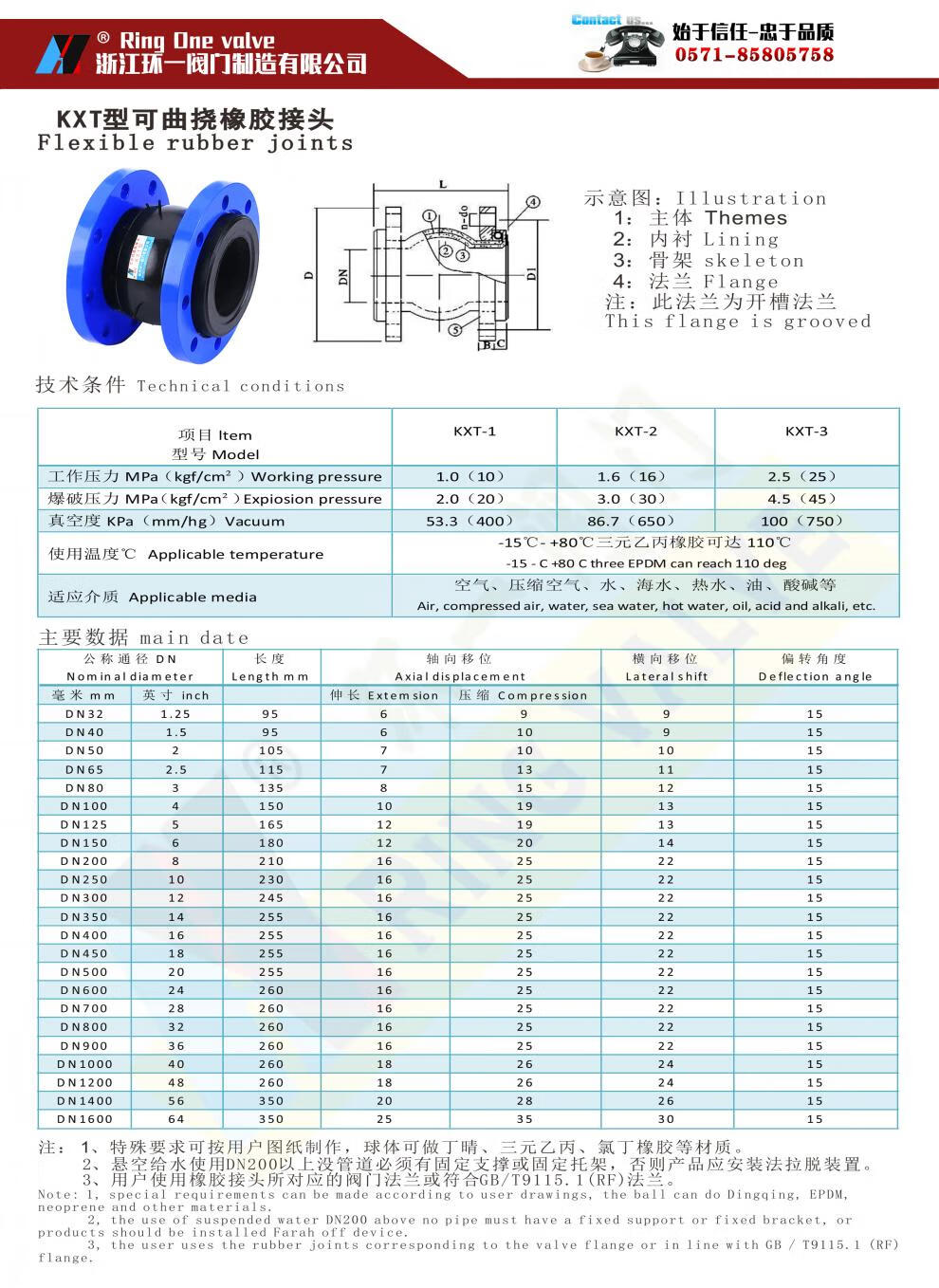

主要数据 Main date
注：1、特殊要求可按用户图纸制作，法兰标准采用GB/T9115.1-2000，可选配（GB、JB、HG、CB、ANSI、DIN、BSEN、NF、EN、JIS、 ISO等）法兰标准生产。橡胶球体可做天然橡胶、三元乙丙橡胶、氯丁橡胶、丁基橡胶、丁晴橡胶、氟橡胶等。2、悬空给水使用DN200以上产品，管道必须有固定支撑或固定托架，否则产品应安装防拉脱装置。
3、用户使用橡胶接头，对应法兰应是阀门法兰或符合GB/T9115.1(RF)法兰。

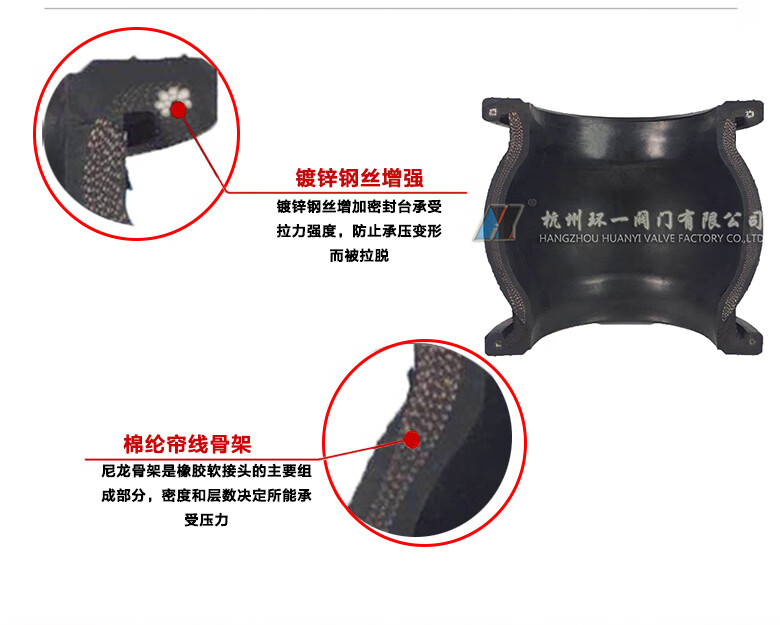

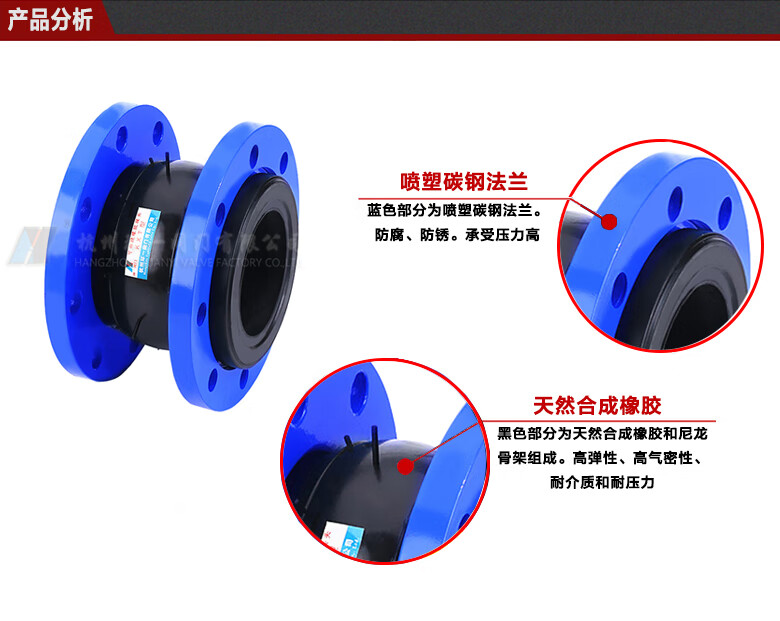

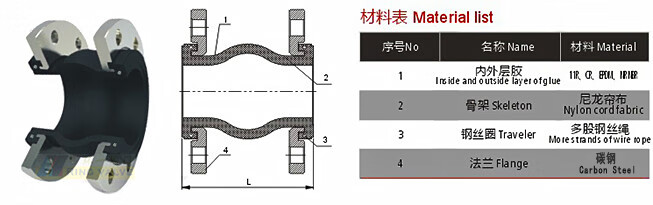

Notes:1. For OEM orders with special requirement rubber joints can be made according to customers' drawings. Generally flange standard is GB/T9115.1-2000 other GB JB HG CB ANSI DIN BSEN NF EN JIS ISO flanges are also available upon request. Material of rubber body can be NR natural rubber EPDM Neoprene IIR butyl rubber NBR Buna-N FKM etc.
2.When rubber joints size above DN200 are used for overhead water supply system the pipes must be equipped with fixed supports or fixed brackets otherwise control units shall be installed on rubber joints.
3.Matching flanges of rubber joints shall be valve flanges or GB/T9115.1(RF) flanges.

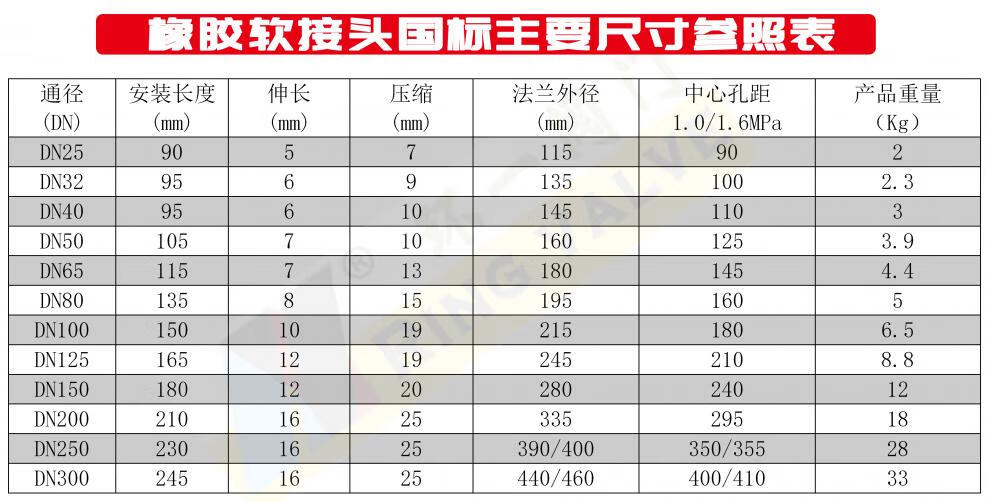

| 公称通径DN Nominal Diameter （mm） |
长度 LengthLmm |
轴向位移 Axial displacement mm |
横向位移 Haorizontal isplacement mm |
偏转角度 Angular deflection(a1+a2)° |
||
| mm |
英寸inch |
伸长Extension | 压缩Compression | |||
| 32 | 1.25 | 95 | 6 | 9 | 9 | 15 |
| 40 | 1.5 | 95 | 6 | 10 | 9 | 15 |
| 50 | 2 | 105 | 7 | 10 | 10 | 15 |
| 65 | 2.5 | 115 | 7 | 13 | 11 | 15 |
| 80 | 3 | 135 | 8 | 15 | 12 | 15 |
| 100 | 4 | 150 | 10 | 19 | 13 | 15 |
| 125 | 5 | 165 | 12 | 19 | 13 | 15 |
| 150 | 6 | 180 | 12 | 20 | 14 | 15 |
| 200 | 8 | 210 | 16 | 25 | 22 | 15 |
| 250 | 10 | 230 | 16 | 25 | 22 | 15 |
| 300 | 12 | 245 | 16 | 25 | 22 | 15 |
| 350 | 14 | 255 | 16 | 25 | 22 | 15 |
| 400 | 16 | 255 | 16 | 25 | 22 | 15 |
| 450 | 18 | 255 | 16 | 25 | 22 | 15 |
| 500 | 20 | 255 | 6 | 25 | 22 | 15 |
| 600 | 24 | 260 | 6 | 25 | 22 | 15 |
| 700 | 28 | 260 | 16 | 25 | 22 | 15 |
| 800 | 32 | 260 | 16 | 25 | 22 | 15 |
| 900 | 36 | 260 | 6 | 25 | 22 | 15 |
| 1000 | 40 | 260 | 18 | 26 | 24 | 15 |
| 1200 | 48 | 260 | 18 | 26 | 24 | 15 |
| 1400 | 56 | 350 | 20 | 28 | 26 | 15 |
| 1600 | 64 | 350 | 25 | 35 | 30 | 10 |
| 1800 | 72 | 350 | 25 | 35 | 30 | 10 |
| 2000 | 80 | 420 | 25 | 35 | 30 | 10 |
| 2200 | 88 | 580 | 25 | 35 | 30 | 10 |
| 2400 | 96 | 610 | 25 | 35 | 30 | 10 |
| 2600 | 104 | 650 | 25 | 35 | 30 | 10 |
| 2800 | 112 | 680 | 25 | 35 | 30 | 10 |
| 3000 | 120 | 680 | 25 | 35 | 30 | 10 |
