推出新款1路带光耦隔离继电器模块，支持高、低电平触发。

一 模块说明:
1、模块采用继电器，常开接口大负载：交流250V/10A，直流30V/10A;
2、采用贴片光耦隔离，驱动能力强，性能稳定；触发电流5mA；
3、模块工作电压有5V、9、12V、24V可供选择；
4、模块可以通过跳线设置高电平或低电平触发；
5、容错设计，即使控制线断，继电器也不会动作；
6、电源指示灯（绿色），继电器状态指示灯（红色）
7、接口设计人性化，所有接口均可通过接线端子直接连线引出，非常方便

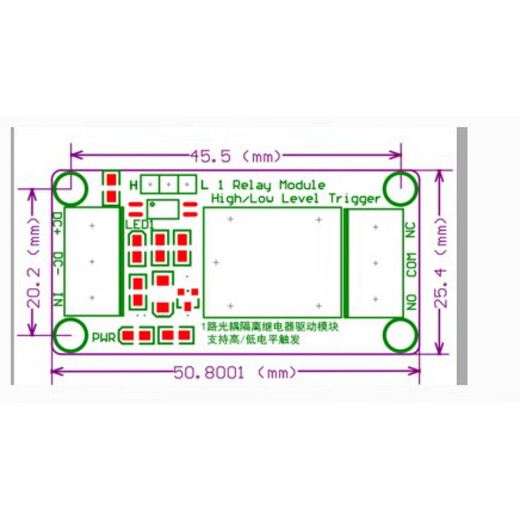

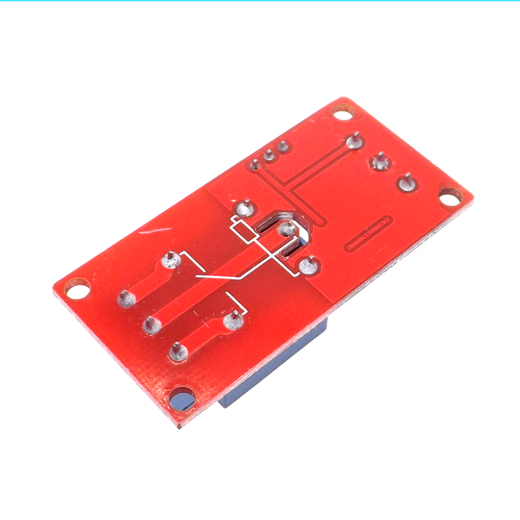

8、模块尺寸：50mm * 26mm* 18.5mm（长*宽*高)
9、设有4个固定螺栓孔，孔3.1mm，间距44.5mm*20.5mm

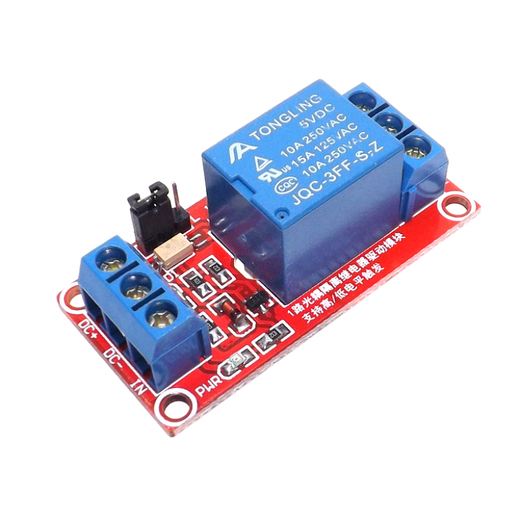

二 模块接口:
1、DC+：接电源正极（电压按继电器要求，有5V.9V.12V和24V选择）
2、DC-：接电源负极
3、IN：可以高或低电平控制继电器吸合

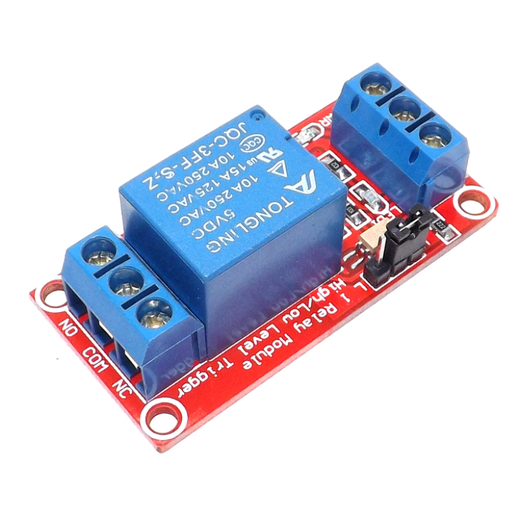

继电器输出端：
1、NO：  继电器常开接口，继电器吸合前悬空，吸合后与COM短接
2、COM：继电器公用接口
3、NC：  继电器常闭接口，继电器吸合前与COM短接，吸合后悬空



三、技术参数：
继电器版本 静态电流 大电流     触发电流   触发电压(低)     高
  5V       5mA      190mA       2-4mA     0-1.5V        2.5-5V
  12V      5mA      80mA        2-4mA     0-4V         4.5-12V
  24V      5mA      50mA        2-4mA     0-8V         8.5-24V

高低电平触发选择端：

1.跳线与LOW短接时为低电平触发;

2.跳线与high短接时为高电平触发。



接线可参考下面接线图：
