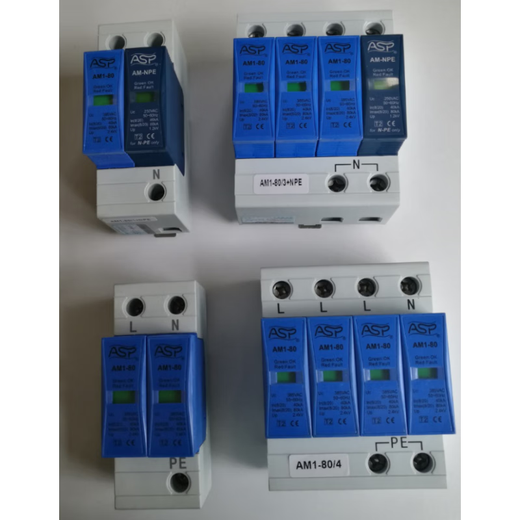

ASP Lei Xun AM1-80/4/AM1-80/3+npe first-level power surge arrester 80KA power surge arrester AM2-40/3+NPE-S second-level 40KA 4

ASP Lei Xun AM1-80/4/AM1-80/3+npe first-level power surge arrester 80KA power surge arrester AM2-40/3+NPE-S second-level 40KA 4
ASP Lei Xun AM1-80/4/AM1-80/3+npe first-level power surge arrester 80KA power surge arrester AM2-40/3+NPE-S second-level 40KA 4
US$153.21
2 or more US$148.61
5 or more US$140.95
10 or more US$133.29
20 or more US$125.63
  • Stock: 99
  • Model: j10099830195548
  • Weight: 100.00kg
  • Dimensions: 1.00cm x 1.00cm x 1.00cm
Add to Cart
Buy Now
Add to Wish List

How to Order & Pay

Shipping: Free Shipping & Customs Tax included are subject to change, please refer to the quote you received.

Delivery: Accurate and precise order tracking. Learn more

Package Safety: Refund for your damaged or lost package. Learn more

Payments:

Shop with confidence

Inspect item by item, verify, conduct quality checks, and upload authentic photos of the products.

Consolidate and repackage all items to reduce international logistics costs and facilitate international transportation.

Our customer service is always here if you need help. Click here to chat with us or Chat on WhatsApp

AM2-40/4
AM2-40/4模块化电源电涌保护器依据IEC和GB标准设计，AM系列低压配电电涌保护器具备强大的电涌泄放能力，每位的大放电电流 40kA(8/20μs)，适用于低压配电的各级保护，依据不同的配电(TT/TN/IT)可选择多种组合方式。
AM2-40/420kA（In）,40kA（Imax）四模块交流电源防雷器
  • 高能电涌保护
  • 内置瞬间过流断路装置
  • 遥信报警接口
  • 可插拔更换模块
  • 失效检测指示
  • 单模块大放电电流40kA(8/20μs)
  • 标准模块化安装
  • 内置过热断路装置
  • 反应速度：10-9秒级
  • 插拔防呆设计
产品性能参数：
型号
AM2-40/4
SPD端口一端口
SPD类别限压型
电源TT-TN-IT
额定电压Un220V
大持续运行电压Uc385V
标称放电电流In(8/20μs)\20kA
大放电电流Imax(8/20μs)40kA
保护水平Up(8/20μs)<1.8kV
串接过流保护装置32A/10kA
响应时间25ns
尺寸2mods,DIN43880
失效指示绿色:正常 红色:失效
安装导线截面积10-35mm2
安装方式35mm标准导轨(EN50022/DIN46277-3)
工作环境温度-40/85℃
外壳材料热塑材料，符合UL94 V-0
外壳保护等级IP20
认证CE RoHS
遥信报警常开/常闭触点端子(可选)
遥信终端的横截面积大1.5mm2单股线/软线
*产品参数以实际产品说明书为准。
产品适用范围：
  • AM2-40/4: 建筑物层配电箱
  • AM-NPE：适用于3+1/1+1接线模式下配电箱及重要设备配电箱
