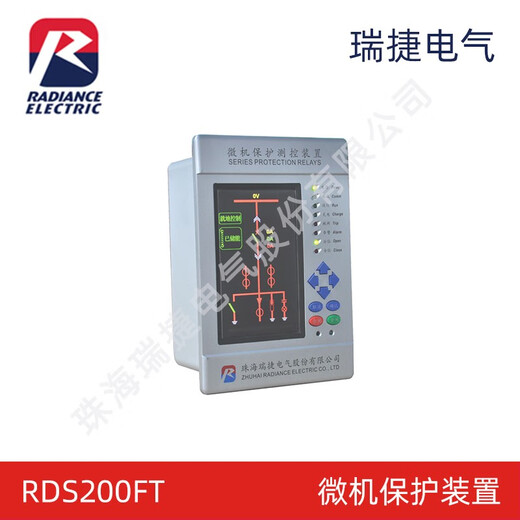

Ruijie Electric RDS200 power supply protection equipment microcomputer comprehensive protection device line protection transformer protection ring network cabinet inflatable cabinet customization

Ruijie Electric RDS200 power supply protection equipment microcomputer comprehensive protection device line protection transformer protection ring network cabinet inflatable cabinet customization
Ruijie Electric RDS200 power supply protection equipment microcomputer comprehensive protection device line protection transformer protection ring network cabinet inflatable cabinet customization
US$834.57
2 or more US$809.53
5 or more US$767.80
10 or more US$726.07
20 or more US$684.35
  • Stock: 99
  • Model: j10101444578887
  • Weight: 1.73kg
  • Dimensions: 253.00cm x 220.00cm x 265.00cm
Add to Cart
Buy Now
Add to Wish List

How to Order & Pay

Shipping: Free Shipping & Customs Tax included are subject to change, please refer to the quote you received.

Delivery: Accurate and precise order tracking. Learn more

Package Safety: Refund for your damaged or lost package. Learn more

Payments:

Shop with confidence

Inspect item by item, verify, conduct quality checks, and upload authentic photos of the products.

Consolidate and repackage all items to reduce international logistics costs and facilitate international transportation.

Our customer service is always here if you need help. Click here to chat with us or Chat on WhatsApp

一、应用范围

   适应电力系统各发电厂、变电站、配电站等对继电保护的要求而专门开发的新一代微机型继电保护设备。



二、产品特点

1.工作环境条件

环境温度： -20℃–+55℃

相对湿度： 5%–95%

大气压力： 86–106KPa

2.主要电气技术参数

工作电源： 交直流通用(AC/DC85-265V)，（DC24/48V订货时须注明）

CT二次额定电流： 额定5A(标准型号),额定1A（1A订货时须注明）

PT二次额定电压： 100V

额定频率： 50Hz

功率消耗： 工作电源不大于10W,交流回路不大于0.5VA

测量范围： 相电流 0.1In–20In；零序电流 0.1A–5A；电压 1.2Un

测量精度： 电流 < 3% ， 电压 < 3%

开入回路： 装置内部提供直流24V（无需外部电源, 外部开入只需提供干接点）

开出接点： DC220V，5A电流（纯阻性负载）

3.绝缘电阻、介质强度和冲击电压

绝缘电阻：≥100 MΩ

介质强度：2KV，50Hz，1min

冲击电压：5KV，(1.2/50)µs

4.振动：符合GB/T14598.2-2011中的有关规定。

5.冲击: 符合GB/T14598.2-2011中的有关规定。

6.碰撞：符合GB/T14598.2-2011中的有关规定。

7.抗电磁干扰性能

GB/T14598.26-2015标准Ⅲ级震荡波抗扰度检验合格。

GB/T14598.26-2015标准Ⅲ级静电放电抗扰度检验合格。

GB/T14598.26-2015标准Ⅲ级射频电磁场辐射抗扰度检验合格。

GB/T14598.26-2015标准Ⅲ级电快速瞬变抗扰度检验合格。

8.允许过载能力

2倍额定电流： 连续工作

10倍额定电流： 10S

40倍额定电流： 1S

1.2倍额定电压： 连续工作1.4倍额定电压： 10S
