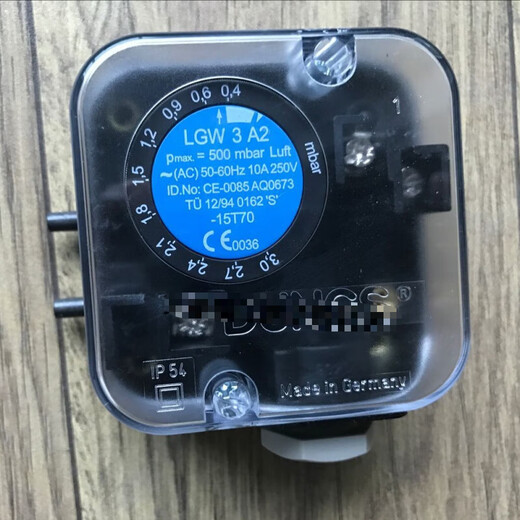

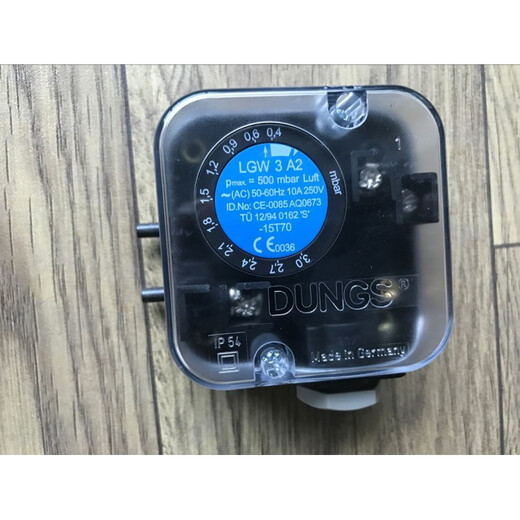

Dongsi pressure switch 10A2 50A2 10A4 LGW150A4 LGW150A2P wind pressure switch LGW3A2

Dongsi pressure switch 10A2 50A2 10A4 LGW150A4 LGW150A2P wind pressure switch LGW3A2
Dongsi pressure switch 10A2 50A2 10A4 LGW150A4 LGW150A2P wind pressure switch LGW3A2
Dongsi pressure switch 10A2 50A2 10A4 LGW150A4 LGW150A2P wind pressure switch LGW3A2
Dongsi pressure switch 10A2 50A2 10A4 LGW150A4 LGW150A2P wind pressure switch LGW3A2
Dongsi pressure switch 10A2 50A2 10A4 LGW150A4 LGW150A2P wind pressure switch LGW3A2
Dongsi pressure switch 10A2 50A2 10A4 LGW150A4 LGW150A2P wind pressure switch LGW3A2
Dongsi pressure switch 10A2 50A2 10A4 LGW150A4 LGW150A2P wind pressure switch LGW3A2
US$98.63
2 or more US$95.67
5 or more US$90.74
10 or more US$85.81
20 or more US$80.88
  • Stock: 99
  • Model: j10103435506253
  • Weight: 1.00kg
  • Dimensions: 1.00cm x 1.00cm x 1.00cm
Add to Cart
Buy Now
Add to Wish List

How to Order & Pay

Shipping: Free Shipping & Customs Tax included are subject to change, please refer to the quote you received.

Delivery: Accurate and precise order tracking. Learn more

Package Safety: Refund for your damaged or lost package. Learn more

Payments:

Shop with confidence

Inspect item by item, verify, conduct quality checks, and upload authentic photos of the products.

Consolidate and repackage all items to reduce international logistics costs and facilitate international transportation.

Our customer service is always here if you need help. Click here to chat with us or Chat on WhatsApp

 产品介绍
差别压力监控器LGW...A2，LGW...A2P是用于燃烧设备的可调节差别压力监控装置。在为使用所设定的额定压力值而改变压力实际值的场合，差别压力监控器可用于流量循环回路的打开、关闭及转换。额定值有带有刻度的调节轮调节。LGW...A2P下部装有检测键。
  • 压力监控器在燃烧，通风及空调技术中用于压力监控。
  • 适用于空气、烟气、废气和其他非腐蚀性气体。
  • 不适用于燃烧气体。
 型号表
型号调整范围mbar压力开关的公差mbar
LGW3A20.4 - 3<0.3
LGW10A21 - 10<0.5
LGW50A22.5 - 50<1
LGW150A230 - 150<3
LGW3A2P0.4 - 3<0.3
LGW10A2P1 - 10<0.5
LGW50A2P2.5 - 50<1
LGW150A2P30 - 150<3
 技术参数
大工作过压
LGW3A2 - LGW150A2500mbar
LGW3A2P - LGW150A2P500mbar
压力连接
LGWA2：软管接口ø4.6mm
LGWA2P：中心外壳下面G1/4，用于过大压力的锥形内罗纹，带检测键；用于欠压的接口ø4.6mm和G1/8内螺纹
测量连接ø9，可用长度为10mm，带闭锁螺丝
温度范围
环境温度-15oC到+60oC
介质温度-15oC到+60oC
储存温度-30oC到+85oC
材料
外壳聚酯
开关部件聚酯
膜片NBR
操作接触部件纯银
操作电压
交流电有效值小10V大250V
直流电小12V大48V
额定电流
交流电有效值10A
直流电20mA
电路连接
标准结构：通过电缆入口M20*1.5连接到螺钉固定接线柱上
特殊结构：接插连接用于符合德国工业标准DIN EN 175 301-803要求的线路插座，3级带保护触点。
防护等级IP54符合标准IEC 529（EN 60529）
调整公差开关点偏差可为额定值±15%，在压力上升时调整，膜片位置垂直
