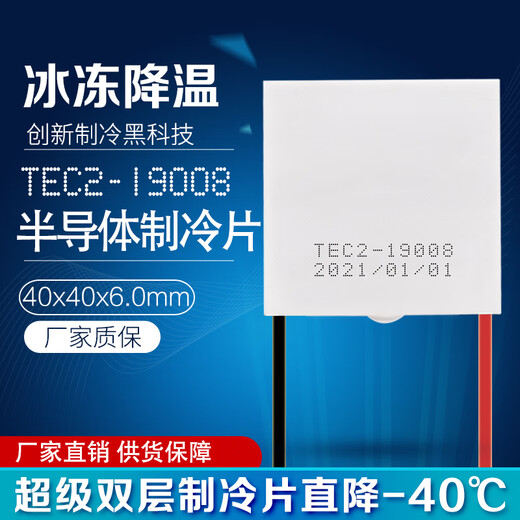

TEC2-19008 Double-layer semiconductor refrigeration chip DC 12V temperature difference refrigerator 40*40*6.0

TEC2-19008 Double-layer semiconductor refrigeration chip DC 12V temperature difference refrigerator 40*40*6.0
TEC2-19008 Double-layer semiconductor refrigeration chip DC 12V temperature difference refrigerator 40*40*6.0
TEC2-19008 Double-layer semiconductor refrigeration chip DC 12V temperature difference refrigerator 40*40*6.0
TEC2-19008 Double-layer semiconductor refrigeration chip DC 12V temperature difference refrigerator 40*40*6.0
TEC2-19008 Double-layer semiconductor refrigeration chip DC 12V temperature difference refrigerator 40*40*6.0
TEC2-19008 Double-layer semiconductor refrigeration chip DC 12V temperature difference refrigerator 40*40*6.0
TEC2-19008 Double-layer semiconductor refrigeration chip DC 12V temperature difference refrigerator 40*40*6.0
US$15.75
2 or more US$13.39
5 or more US$12.60
10 or more US$11.81
20 or more US$11.03
  • Stock: 99
  • Model: j10126422781519
  • Weight: 0.10kg
  • Dimensions: 100.00cm x 100.00cm x 100.00cm
Add to Cart
Buy Now
Add to Wish List

How to Order & Pay

Shipping: Free Shipping & Customs Tax included are subject to change, please refer to the quote you received.

Delivery: Accurate and precise order tracking. Learn more

Package Safety: Refund for your damaged or lost package. Learn more

Payments:

Shop with confidence

Inspect item by item, verify, conduct quality checks, and upload authentic photos of the products.

Consolidate and repackage all items to reduce international logistics costs and facilitate international transportation.

Our customer service is always here if you need help. Click here to chat with us or Chat on WhatsApp

半 导 体 制 冷 片 主 要 参 数



型 号

电 流

电 压

功率

温 差

外型尺寸

TypeNumber

lmax(A)

U max(V)

Qcmax (W)

△TmaxQC=0(C)

Dimensions(mm)

TEC2-19008

6-8

12-16

96

83

40*40*6.0

芯片型号：TEC2-19008
外形尺寸：40*40*6.0mm(双层) 件对数 190
额定电压：DC12-16V（Vmax：16V）
工作电流：Imax=5.6-7.5A（额定电压启动时6.5A恒定后5.6A左右）
内部阻值：1.5~1.6Ω（环境温度25±1℃1kHZ Ac）

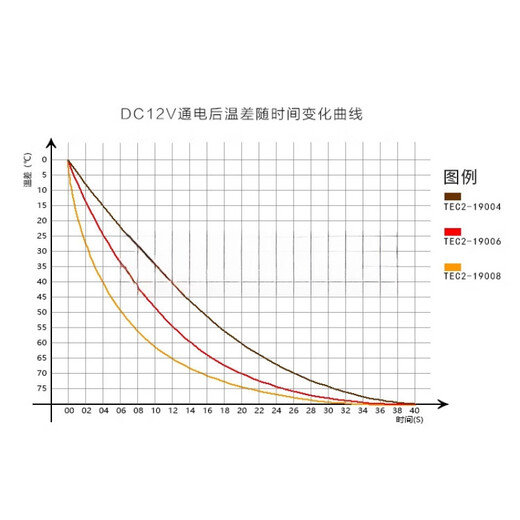

大温差：△Tmax(Qc=0) 83℃以上。
致冷功率：Qcmax 96W
导线规格：引线长200±5mm RV标准导线 单头5mm镀锡
装配压力：85N/cm2
工作环境：温度范围 -55℃～83℃（过高的环境温度降直接影响制冷效率）
封装工艺：四周标准704硅橡胶密封
包装标准：泡沫盒包装存放条件 环境温度-10℃～40℃
存放条件：-40~60℃
