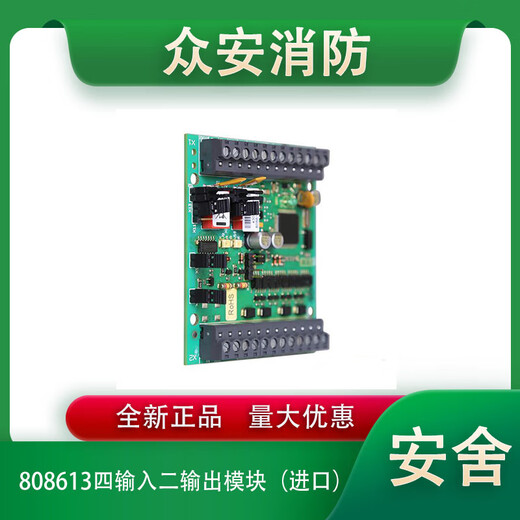

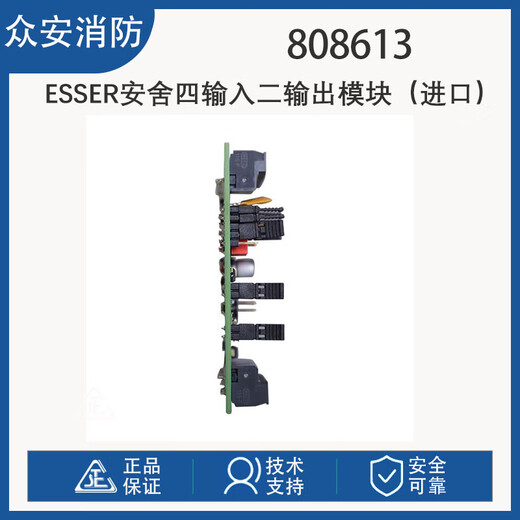

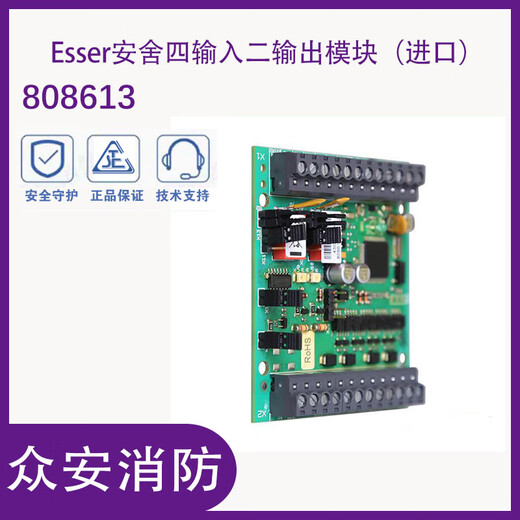

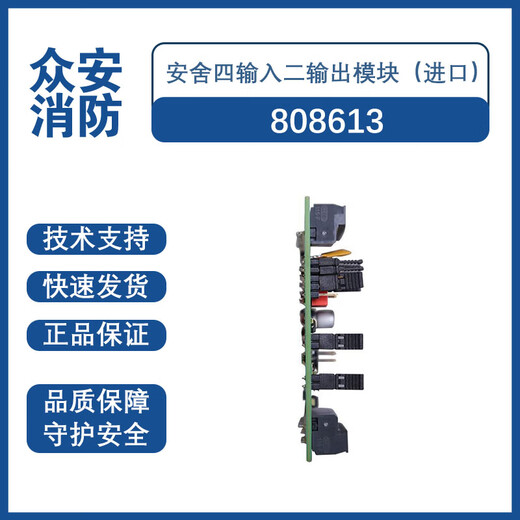

Anshe 808613 intelligent four-input two-output module (imported)

Anshe 808613 intelligent four-input two-output module (imported)
Anshe 808613 intelligent four-input two-output module (imported)
Anshe 808613 intelligent four-input two-output module (imported)
Anshe 808613 intelligent four-input two-output module (imported)
Anshe 808613 intelligent four-input two-output module (imported)
Anshe 808613 intelligent four-input two-output module (imported)
Anshe 808613 intelligent four-input two-output module (imported)
Anshe 808613 intelligent four-input two-output module (imported)
Anshe 808613 intelligent four-input two-output module (imported)
Anshe 808613 intelligent four-input two-output module (imported)
Anshe 808613 intelligent four-input two-output module (imported)
US$233.54
2 or more US$226.53
5 or more US$214.85
10 or more US$203.18
20 or more US$191.50
  • Stock: 99
  • Model: j10210843920396
  • Weight: 0.50kg
Add to Cart
Buy Now
Add to Wish List

How to Order & Pay

Shipping: Free Shipping & Customs Tax included are subject to change, please refer to the quote you received.

Delivery: Accurate and precise order tracking. Learn more

Package Safety: Refund for your damaged or lost package. Learn more

Payments:

Shop with confidence

Inspect item by item, verify, conduct quality checks, and upload authentic photos of the products.

Consolidate and repackage all items to reduce international logistics costs and facilitate international transportation.

Our customer service is always here if you need help. Click here to chat with us or Chat on WhatsApp

安舍808613智能型四输入二输出模块



一，特点：

◆每一个讯号输入／输出点均有其独立的编程地址

◆模块连接在火灾报警控制系统总线环路中，仅占用到回路结构中127个设备部件地址点中的一个

◆2个信号输出点，接触点容量为30VDC/1A

◆对外接电源可编程监测

◆4个信号输入点，可接收无源开关信号、非地址手动报警按钮信号或连接最多30个非地址探测器

◆常用于连接控制各外控设备、外控设备工作讯号反馈以及消火栓按钮、非地址手动报警按钮或地下室车库传统温感探测器群接入。


二，应用参数：

模块：4输入/2输出模块

部件号：808613

继电器触点容量：30VDC/1A

继电器监视：10KOhm正负40%

典型电压（回路）：19VDC，**42VDC

典型电流（回路）：小于250uA

外接电源电流：25mA/探测器区域；28mA/组区域

工作环境温度：-10-50摄氏度

储藏温度：-20-75摄氏度

重量：大约28g

尺寸（W*H*D）：72*82*20mm
