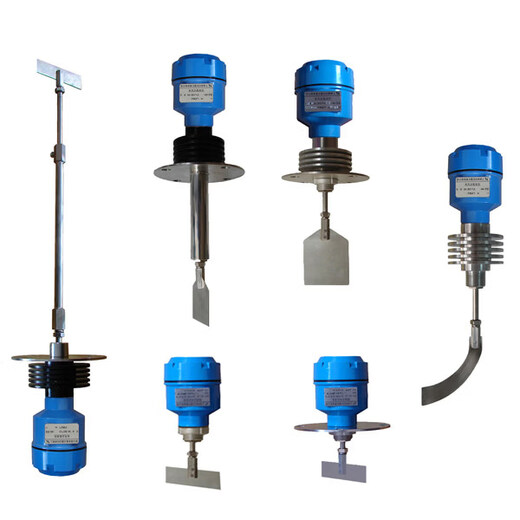

Paddle level switch, level controller, knife type, cable type, high temperature type

Paddle level switch, level controller, knife type, cable type, high temperature type
Paddle level switch, level controller, knife type, cable type, high temperature type
US$252.48
2 or more US$244.90
5 or more US$232.28
10 or more US$219.65
20 or more US$207.03
  • Stock: 99
  • Model: j10211501420098
  • Weight: 0.50kg
Add to Cart
Buy Now
Add to Wish List

How to Order & Pay

Shipping: Free Shipping & Customs Tax included are subject to change, please refer to the quote you received.

Delivery: Accurate and precise order tracking. Learn more

Package Safety: Refund for your damaged or lost package. Learn more

Payments:

Shop with confidence

Inspect item by item, verify, conduct quality checks, and upload authentic photos of the products.

Consolidate and repackage all items to reduce international logistics costs and facilitate international transportation.

Our customer service is always here if you need help. Click here to chat with us or Chat on WhatsApp

OWZX阻旋料位开关

OWZX阻旋开关是用于固态物料（包括粉状、块状、粒状、胶状等）的物位控制器。它具有密封性好、过载能力强、轻便易装、输出触点容量大等特点。针对不同比重的物料可通过调弹簧的拉力来实现，其接触物料部分全为不锈钢材料。阻旋开关在化工、塑料、水泥、制药、饲料、**等行业得到了广泛的应用。



工作原理

电机带动叶片旋转，当被测介质到达叶片位置时，叶片受阻停止转动，从而触动后面的微动开关输出开关信号，当被测介质下降离开叶片时，叶片在弹簧的作用下恢复原位继续转动。弹簧的拉力可根据所测介质的比重进行调整，物料比重大时弹簧调整到强，反之调至弱。



产品特点

1、美国小料斗型技术，三个轴承支撑，运行更可靠

2、全新的结构设计，耐锈蚀、无污染、防潮、防尘

3、扭力稳定可靠且扭力大小可调节

4、叶片承受过重负载，离合器自动打滑，保护电机不受损坏。

5、机电分离式结构，整体免拆卸易维护

6、接线盒IP65的防护等级，密封性好，可室外使用

7、特殊叶片可使用于低密度物料

8、使用范围广泛，可用于钢铁，水泥，电力，饲料，化学塑胶，化学肥料等

9、高温型可在≤300℃的物料环境下使用



应用:

1、冶金、化工、石油、电力、**、造纸、煤炭、建材、医药等领域料位的报警和控制

2、高尘、防爆等特殊环境



技术参数

1、用途 上、下限测量

2、电源：220VAC /110VAC/24VAC/24VDC

3、触点容量：250VAC/10ASPDT（单刀双掷）

4、功率：＜5W

5、叶片转速：1RPM（转/分）

6、力矩：1.0kg×cm

7、物料比重：≥0.5g/cm3

8、工作温度：-10℃-80℃（高可达400℃）

9、绝缘电阻：≥100MΩ

10、介电强度：1500V*1min

11、输出： 开关信号

12、出线口：M18x1.5 M20x1.5(防爆)





OWZX

阻旋式料位开关

1

24VDC

供电方式

2

220VAC

30

标准螺纹安装型

基本类型

31

标准汗兰安装型

32

轴保护管型

33

轴长可调型型

34

高温法兰型

35

高温螺纹型

36

高温保护管型

37

钢缆型

A

100*30(WXH) 3.24VAC

叶片形式

B

65*80(WXH) 4.24VDC

C

50*30(WXH)

D

镰刀型

E

特殊型

1

侧装

安装方式

2

顶装

0

不防爆

防 爆

B

隔爆型

A

常温

物料环境

B

＜300℃

0

常压

过程压力

（MPa）

1

0~2

L

如：插入深度

探杆长度

XX

如具体介质

其他选项
