Tiannuoxiang MTR3CCD06000KMA6 million 3.01 inch CCD IMX695 black and white dark field fluorescence camera microscope

Tiannuoxiang MTR3CCD06000KMA6 million 3.01 inch CCD IMX695 black and white dark field fluorescence camera microscope
Tiannuoxiang MTR3CCD06000KMA6 million 3.01 inch CCD IMX695 black and white dark field fluorescence camera microscope
Tiannuoxiang MTR3CCD06000KMA6 million 3.01 inch CCD IMX695 black and white dark field fluorescence camera microscope
Tiannuoxiang MTR3CCD06000KMA6 million 3.01 inch CCD IMX695 black and white dark field fluorescence camera microscope
Tiannuoxiang MTR3CCD06000KMA6 million 3.01 inch CCD IMX695 black and white dark field fluorescence camera microscope
Tiannuoxiang MTR3CCD06000KMA6 million 3.01 inch CCD IMX695 black and white dark field fluorescence camera microscope
Tiannuoxiang MTR3CCD06000KMA6 million 3.01 inch CCD IMX695 black and white dark field fluorescence camera microscope
Tiannuoxiang MTR3CCD06000KMA6 million 3.01 inch CCD IMX695 black and white dark field fluorescence camera microscope
Tiannuoxiang MTR3CCD06000KMA6 million 3.01 inch CCD IMX695 black and white dark field fluorescence camera microscope
Tiannuoxiang MTR3CCD06000KMA6 million 3.01 inch CCD IMX695 black and white dark field fluorescence camera microscope
Tiannuoxiang MTR3CCD06000KMA6 million 3.01 inch CCD IMX695 black and white dark field fluorescence camera microscope
US$4,499.10
  • Stock: 100
  • Model: 10052012670291
  • Weight: 0.10kg
  • Dimensions: 50.00cm x 50.00cm x 50.00cm
Add to Cart
Buy Now
Add to Wish List

How to Order & Pay

Shipping: Free Shipping & Customs Tax included are subject to change, please refer to the quote you received.

Delivery: Accurate and precise order tracking. Learn more

Package Safety: Refund for your damaged or lost package. Learn more

Payments:

Shop with confidence

Inspect item by item, verify, conduct quality checks, and upload authentic photos of the products.

Consolidate and repackage all items to reduce international logistics costs and facilitate international transportation.

Our customer service is always here if you need help. Click here to chat with us or Chat on WhatsApp

Please log in to view detailed product descriptions and select product options.

订购代码

传感器型号与尺寸

像素(μm)

G光灵敏度

暗电流

FPS/分辨率

采样平均

曝光时间

MTR3CCD12000KPA
MP112000A

12M/ICX834AQG(C)
1“ (13.15x8.77)

3.1x3.1

420mv with 1/30s

15.2mv with 1/30s

3.6@4248x2836
3.6@2124x1418

1x1,

2x2

0.06ms~1h

MTR3CCD12000KMA
MM112000A

12M/ICX834ALG(M)
1“ (13.15x8.77)

3.1x3.1

420mv with 1/30s

12mv with 1/30s

(F8.0)

3.6@4248x2836
3.6@2124x1418

1x1,

2x2

0.06ms~1h

MTR3CCD09000KPA
MP109000A

9.0M/ICX814AQG(C)
1“ (12.47x9.98)

3.69x3.69

580mv with 1/30s

12mv with 1/30s

4.4@3388x2712
4.4@1694x1356

1x1,

2x2

0.06ms~1h

MTR3CCD09000KMA
MM109000A

9.0M/ICX814ALG(M)
1“ (12.47x9.98)

3.69x3.69

660mv with 1/30s

12mv with 1/30s

(F8.0)

4.4@3388x2712
4.4@1694x1356

1x1,

2x2

0.06ms~1h

MTR3CCD06000KPA
MP106000A

6.0M/ICX695AQG(C)
1“ (12.48x9.99)

4.54x4.54

880mv with 1/30s

8mv with 1/30s

7.5@2748x2200
14@2748x1092

1x1

0.06ms~1h

MTR3CCD06000KMA
MM106000A

6.0M/ICX695ALG(M)
1“ (12.48x9.99)

4.54x4.54

1000mv with 1/30s

8mv with 1/30s

7.5@2748x2200
14@2748x1092

1x1

0.06ms~1h

MTR3CCD02800KPA
MP102800A

2.8M/ICX674AQG(C)
2/3“ (8.81x6.63)

4.54x4.54

800mv with 1/30s
4mv with 1/30s

15@1938x1460
17@1610x1212
18@1930x1092

1x1

0.05ms~1h

MTR3CCD02800KMA
MM102800A

2.8M/ICX674ALG(M)
2/3“ (8.81x6.63)

4.54x4.54

950mv with 1/30s
4mv with 1/30s

15@1938x1460
17@1610x1212
18@1930x1092

1x1

0.05ms~1h

MTR3CCD01400KPA
MP101400A

1.4M/ICX285AQ(C)
2/3“ (8.88x6.70)

6.45x6.45

1240mv with 1/30s
10mv with 1/30s

15@1360x1024

1x1

0.07ms~1h

MTR3CCD01400KMA
MM101400A

1.4M/ICX285AL(M)
2/3“ (8.88x6.70)

6.45x6.45

1300mv with 1/30s

11mv with 1/30s

15@1360x1024

1x1

0.07ms~1h

MTR3CCD01400KPB
MP101400B

1.4M/ICX825AQA(C)
2/3“ (8.88x6.70)

6.45x6.45

2000mv with 1/30s
4.8mv with 1/30s

25@1376x1040

1x1

0.07ms~1h

MTR3CCD01400KMB
MM101400B

1.4M/ICX825ALA(M)
2/3“ (8.88x6.70)

6.45x6.45

2000mv with 1/30s

4.8mv with 1/30s

25@1376x1040

1x1

0.07ms~1h

C:彩色; M:黑白;

MTR3CCD相机其他硬件参数

光谱响应范围

380-650nm (有红外截止滤光片情况下)

白平衡

ROI 白平衡/手动Temp-Tint调整/黑白相机不提供

色彩还原技术

Ultra-Fine TM颜色处理引擎

捕获/控制SDK

Windows/Linux/macOS/Android多平台SDK(原生C/C++, C#/VB.NET, Python, Java, DirectShow, Twain等)

记录方式

图像和视频(软件或硬件触发)

制冷方式*

双级循环式热电制冷系统，低于环境温度50度以下，精准可控)(视传感器型号略有差别)

相机工作环境

工作温度（摄氏度）

-10~ 50

贮存温度（摄氏度）

-20~ 60

工作湿度

30~80%RH

贮存湿度

10~60%RH

供电电源

相机通过USB3.0接口供电(兼容USB2.0)

制冷模块通过外部电源供电，DC12V，3A

软件运行环境

操作系统

Microsoft WindowsXP/ Vista / 7 / 8 /10(32 & 64 位)

OS X (Mac OS X)

Linux

计算机配置

CPU:Intel Core 2 2.8GHz 或更高

内存:2GB或更大

USB接口:USB3.0高速接口，兼容USB2.0接口

:17”或以上

CD-ROM

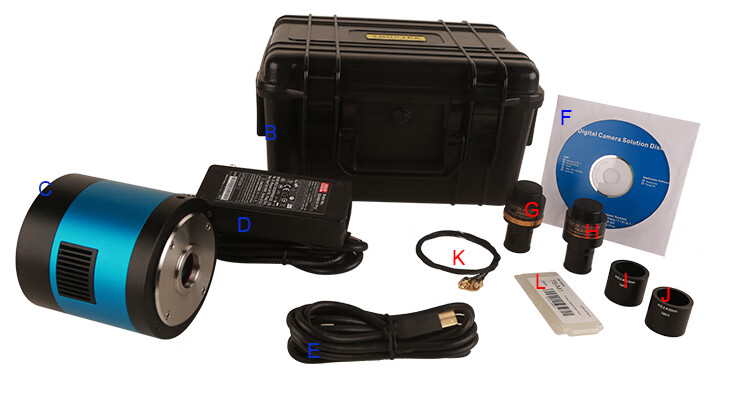

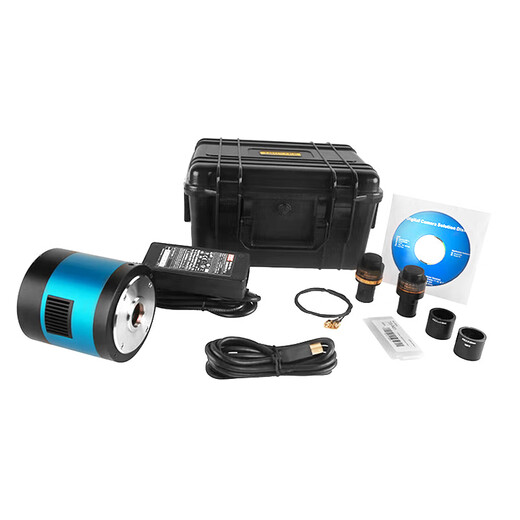

标准包装列表

A

包装箱规格 L:50cm W:30cm H:30cm (20pcs, 12~17Kg/ carton),这里在图未示出

B

3-A仪器安全盒: L:28cm W:23.0cm H:15.5cm (1pcs, 2.8Kg/盒)；外包装纸箱尺寸：L:28.2cm W:25.2cm H:16.7cm

C

MTR3CCD 系列相机

D

电源适配器: 输入: AC 100~240V 50Hz/60Hz,输出: DC 12V 3A

E

高速USB3.0 A公到B公镀金头数据线/2.0m

F

CD (驱动及应用软件, 12cm)

可选附件

G

可调焦式目镜筒适配器

Dia.23.2mm目镜筒转C接口

108004/AMA100

Dia.31.75mm目镜筒转C接口

108011/ATA100

H

固定式目镜筒适配器

Dia.23.2mm目镜筒转C接口

108008/FMA100

Dia.31.75mm目镜筒转C接口

108014/FTA100

注意： 对G和H选项, 请先确定你的相机型号(C接口，显微镜相机或望远镜相机), 客服会根据你的应用帮助你选定合适的显微镜或望远镜适配器;

I

108015(Dia.23.2mm to 30.0mm环)/用于直径30mm目镜筒转接环

J

108016(Dia.23.2mm to 30.5mm环)/ 用于直径30.5mm目镜筒转接环

K

外触发控制线（视是否则需要外触发选配）

L

测微尺

106011/TS-M1(X=0.01mm/100Div.)
106012/TS-M2(X,Y=0.01mm/100Div.)
106013/TS-M7(X=0.01mm/100Div., 0.10mm/100Div.)
