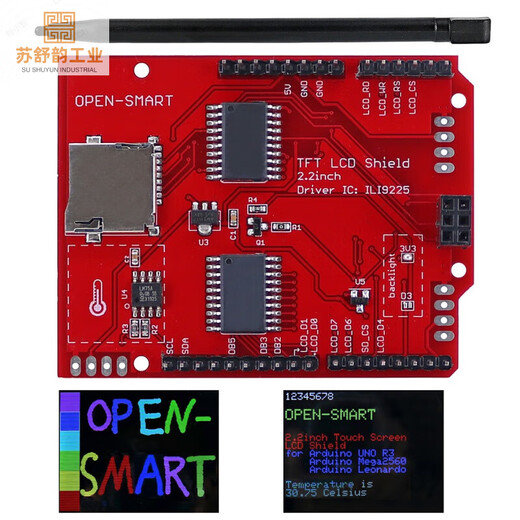

这个2.2寸TFT触摸屏扩展板，采用标准的Shield接口，兼容性强。集成了2.2寸触摸屏、I2C温度传感器、TF卡座、电平转换电路，二次开发容易。
搭配GPRS模块，可以制作DIY手机。
搭配NFC读写模块，可以制作门禁与照片显示。
搭配电压、电流传感器，可以制作示波器。

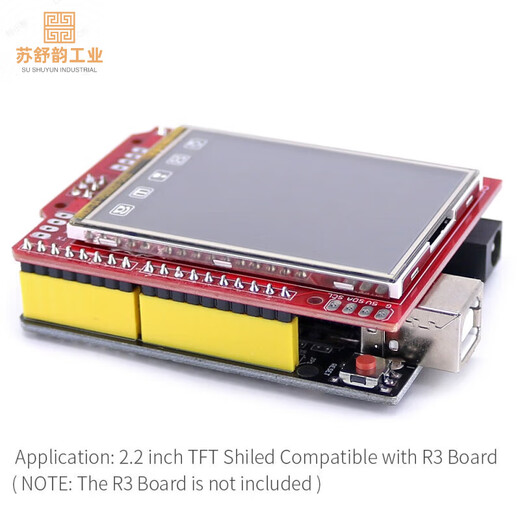

- 兼容UNO R3及其兼容主板可以直接使用它显示字符和图形，BMP格式的图片，可实现触摸控制

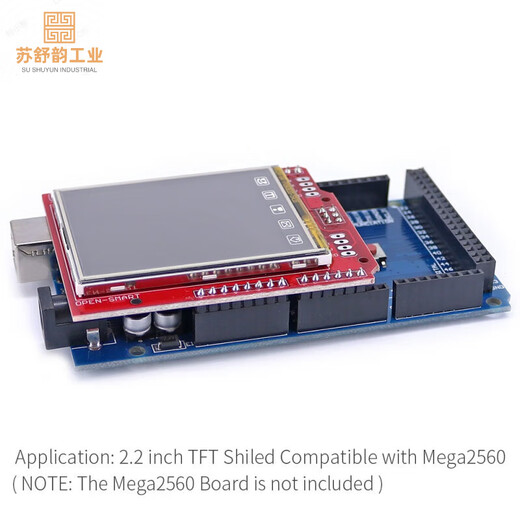

- 兼容性：由于SD卡连接的是ICSP接口的SPI引脚，所以兼容UNO R3 / Mega2560 / Leonardo
- 触摸屏类型：电阻式触摸屏

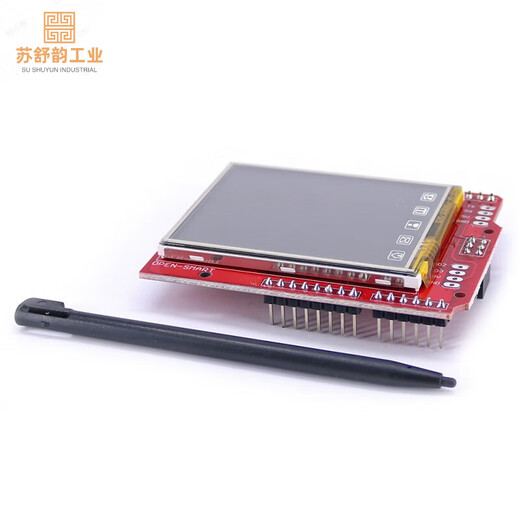

- 触摸笔：长度为9cm
- 分辨率：176X220
- 显示屏尺寸：2.2寸
- 操作电压：5V
- 逻辑电平：5V / 3.3V
- 板载3.3V / 300mA稳压电路
- 操作电流：大值是150mA
- 使用了A0 - A3引脚、D4 - D13引脚，还有I2C接口，D0 / D1 / D2 / D3可用，具体请参考产品原理图
- 引出了主板的I2C接口焊盘，可以外接DS1307时钟模块、BMP280气压模块、AP3216数字式环境光接近传感器模块。
- 引出了RX/TX接口，可以外接串口ESP-07 / ESP-12 Wi-Fi模块，串口MP3模块，串口GPRS模块。
- 板载Micro SD卡座，支持Micro SD / TF卡
- 板载LM75温度传感器：默认I2C地址是0X48，量程是-55 ~ 125’C
- 非常适用于制作数码相框、示波器、函数发生器、检测显示器
1 x 扩展板
1 x 触摸笔
