数字功率计（又名电参数测试仪），可以同时测量单、三相用电设备的电压、电流、功率、功率因数、频率、电能、谐波等参数，测量，显示直观，测量内容丰富，具有量程范围宽，预置报警、锁存和通讯等功能，已广泛地应用于电机、家用电器、电动工具、水泵、变压器、电源、照明、电力等领域

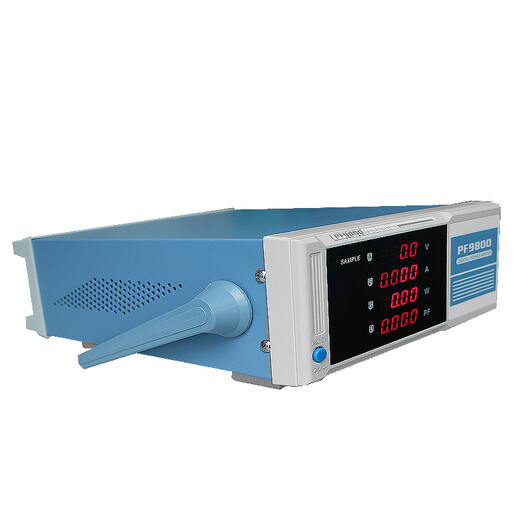

1. PF9800智能电量测量仪采用紧凑型外箱设计，占用空间更小，携带更方便。功能齐全，极高，适合企业大批量采购。
技术参数：
| 型号 | PF9800 智能电量测量仪 |
| 四窗口显示 | V、A、W、PF |
| 输入电压 | 3.0V～600V |
| 输入电流 | 5mA～20A |
| 量程切换 | 自动 |
| 功率因素 | -1.000～+1.000 |
| 精度 | ±(0.4%读数+ 0.1%量程+1字) |
| 频率范围 | AC：45Hz～65Hz，带宽：5kHz |
2.PF9901智能电量测量仪采用紧凑型外箱设计，占用空间更小，携带更方便。功能齐全，极高，适合企业大批量采购。
技术参数：
| 型号 | PF9901智能电量测量仪 |
| 三窗口显示 | V、A、W/PF/HZ |
| 输入电压 | 3.0V～300V |
| 输入电流 | 5mA～20A/10mA～40A |
| 量程切换 | 自动/手动 |
| 功率因素 | -1.000～+1.000 |
| 精度 | ±(0.4%读数+ 0.1%量程+1字) |
| 频率范围 | AC：45Hz～65Hz，带宽：5kHz |
| 上下限判定功能 | 具备电流、功率上下限设定、判别及报警功能，非常适合产线测量。 |
| 锁存功能 | 数据波动时使用,方便读数 |
3. PF9810/PF9811智能电量测量仪除具备基本电参数测量功能外，还具备谐波分析功能。仪器采用PLL方法，可以计算电压、电流的总谐波失真和各次谐波值，谐波测量符合IEC61000-3-2标准。配备专用测试软件，用户可在电脑中观察电压、电流实际波形及频谱图。
技术参数：
| 型号 | PF9810智能电量测量仪 | PF9811智能电量测量仪 |
| 四窗口显示 | V、A、W、PF/HZ/THD/CF | |
| 输入电压 | 3.0V～600V | |
| 输入电流 | 0.5mA～2000mA | 5mA～20A |
| 量程切换 | 自动 | |
| 功率因素 | -1.000～+1.000 | |
| 频率范围 | AC:45Hz～65Hz,带宽5kHz | |
| 精度 | ±(0.4%读数 + 0.1%量程+1字) | |
| 谐波分析功能 | 可分析电压电流的总谐波失真和2-50次各次谐波的有效值和相对值 | |
| 通讯方式 | RS-232/RS485接口（可选） | |
| 锁存功能 | 数据波动时使用,方便读数 | |
