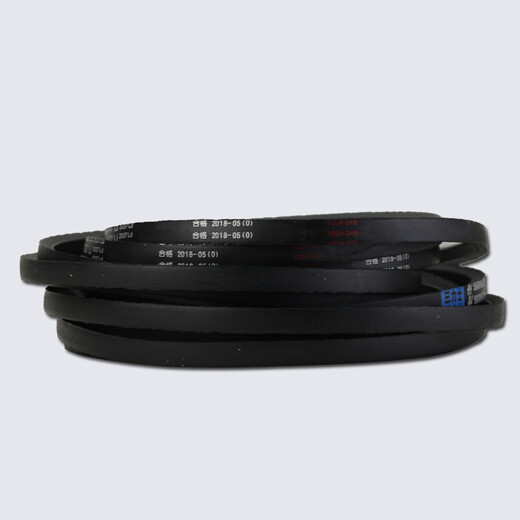

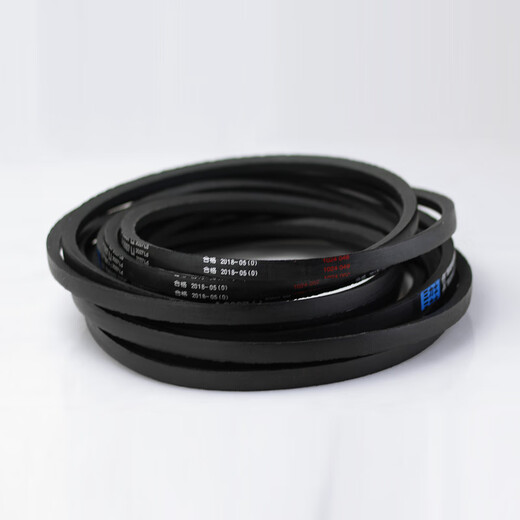

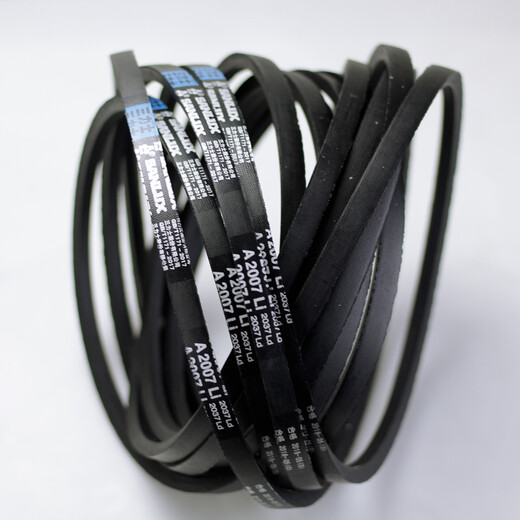

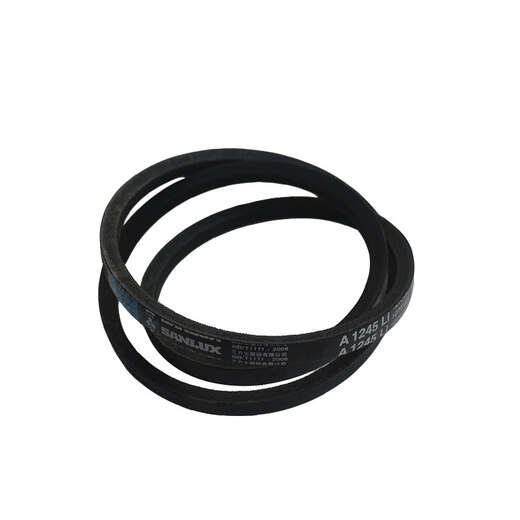

Sanlix A-type triangle belt A1245 belt/triangle belt/conveyor belt/transmission belt/transmission belt/synchronous conveyor belt A1473


Sanlix A-type triangle belt A1245 belt/triangle belt/conveyor belt/transmission belt/transmission belt/synchronous conveyor belt A1473

Sanlix A-type triangle belt A1245 belt/triangle belt/conveyor belt/transmission belt/transmission belt/synchronous conveyor belt A1473

Sanlix A-type triangle belt A1245 belt/triangle belt/conveyor belt/transmission belt/transmission belt/synchronous conveyor belt A1473

Sanlix A-type triangle belt A1245 belt/triangle belt/conveyor belt/transmission belt/transmission belt/synchronous conveyor belt A1473

Sanlix A-type triangle belt A1245 belt/triangle belt/conveyor belt/transmission belt/transmission belt/synchronous conveyor belt A1473

Sanlix A-type triangle belt A1245 belt/triangle belt/conveyor belt/transmission belt/transmission belt/synchronous conveyor belt A1473

Sanlix A-type triangle belt A1245 belt/triangle belt/conveyor belt/transmission belt/transmission belt/synchronous conveyor belt A1473

Sanlix A-type triangle belt A1245 belt/triangle belt/conveyor belt/transmission belt/transmission belt/synchronous conveyor belt A1473

Sanlix A-type triangle belt A1245 belt/triangle belt/conveyor belt/transmission belt/transmission belt/synchronous conveyor belt A1473

Sanlix A-type triangle belt A1245 belt/triangle belt/conveyor belt/transmission belt/transmission belt/synchronous conveyor belt A1473

Sanlix A-type triangle belt A1245 belt/triangle belt/conveyor belt/transmission belt/transmission belt/synchronous conveyor belt A1473

Sanlix A-type triangle belt A1245 belt/triangle belt/conveyor belt/transmission belt/transmission belt/synchronous conveyor belt A1473

Sanlix A-type triangle belt A1245 belt/triangle belt/conveyor belt/transmission belt/transmission belt/synchronous conveyor belt A1473

Sanlix A-type triangle belt A1245 belt/triangle belt/conveyor belt/transmission belt/transmission belt/synchronous conveyor belt A1473

Sanlix A-type triangle belt A1245 belt/triangle belt/conveyor belt/transmission belt/transmission belt/synchronous conveyor belt A1473

Sanlix A-type triangle belt A1245 belt/triangle belt/conveyor belt/transmission belt/transmission belt/synchronous conveyor belt A1473

Sanlix A-type triangle belt A1245 belt/triangle belt/conveyor belt/transmission belt/transmission belt/synchronous conveyor belt A1473

Sanlix A-type triangle belt A1245 belt/triangle belt/conveyor belt/transmission belt/transmission belt/synchronous conveyor belt A1473
Sanlix A-type triangle belt A1245 belt/triangle belt/conveyor belt/transmission belt/transmission belt/synchronous conveyor belt A1473
US$13.47
  • Stock: 100
  • Model: 10788560827
  • Weight: 1.00kg
  • Dimensions: 5.00cm x 5.00cm x 2.00cm

How to Order & Pay

Shipping: Free Shipping & Customs Tax included are subject to change, please refer to the quote you received.

Delivery: Accurate and precise order tracking. Learn more

Package Safety: Refund for your damaged or lost package. Learn more

Payments:


Shop with confidence

Inspect item by item, verify, conduct quality checks, and upload authentic photos of the products.

Consolidate and repackage all items to reduce international logistics costs and facilitate international transportation.

Our customer service is always here if you need help. Click here to chat with us or Chat on WhatsApp

Please log in to view detailed product descriptions and select product options.

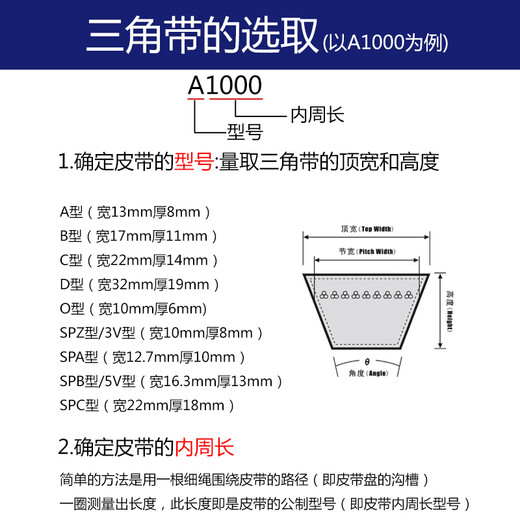

选购三角带的方法:

1.先确定皮带的上宽和厚度:

A型(宽13mm厚8mm)

B型(宽17mm厚11mm)

C型(宽22mm厚14mm)

D型(宽32mm厚19mm)

O型(宽10mm厚6mm)

SPZ型/3V型(宽10mm厚8mm)

SPA型(宽12.7mm厚10mm)

SPB型/5V型(宽16.3mm厚13mm)

SPC型(宽22mm厚18mm)

2.然后确定内周长:简单的方法是用一根细绳围绕皮带的路径(即皮带盘的沟槽)一圈测量出长度,此长度即是皮带的公制型号(即皮带内周长型号)。

三角带有A型.B型.C型.D型.O型

普通工业V带

特点:
普通包布 V 带具有高强力,低伸长,配组公差小,耐疲劳度达 10 7 次以上等优点。
标识:
普通包布 V 带的标识,本公司均按 V 带的内周长度及基准长度标识,各型号换算在系见下表。

型号
TYPE
顶宽
TOP WIDTH
节宽
PITCHWIDTH
高度
HEIGHT
角度
ANGLE
长度换算
LENGTH CONVERSION
长度范围(英寸)
LENGTH RANGE(INCH)
长度范围(毫米)
LENGTH RANGE(MM)
标识标准
FACTORY MARK
Z 10 8.5 6

40°

Li=Lw-22 18"-120" 457-3048 Li
A 13 11.0 8

40°

Li=Lw-30 18"-200" 457-5080 Li
B 17 14.0 11

40°

Li=Lw-40 19"-300" 483-7620 Li
C 22 19.0 14

40°

Li=Lw-58 29"-300" 737-7620 Li
D 32 27.0 19

40°

Li=Lw-75 80"-400" 2032-10160 Li
E 38 32.0 23

40°

Li=Lw-80 118"-400" 2997-10160

Li







特种工业V带

特点:
窄形包布V带具有横向刚度大,传递功率比普通V带高50-100%,传动极限速度40m/s,传动效率95%以上。

标识:
窄形包布V带分为两类,一类为基准制SP系列,型号有SPZ,SPA,SPB,SPC;另一类为有效制V系列,型号有3V(9N),5V(15N),8V(25N)。本公司均按V带的外周长度标识,若客户有特殊要求,需在要货清单上注明。各型号换算关系见下表。



型号
TYPE
顶宽
TOP WIDTH
节宽
PITCHWIDTH
高度
HEIGHT
角度
ANGLE
长度换算
LENGTH CONVERSION
长度范围(英寸)
LENGTH RANGE(INCH)
长度范围(毫米)
LENGTH RANGE(MM)
标识标准
FACTORY MARK
3V(9N)
9.5
/
8.0

40°

La=Li+50
18"-200"
457-5080
La
5V(15N)
16.0
/
13.5

40°

La=Li+82
44"-300"
1100-7620
La
8V(25N)
25.5
/
23.0
40°
La=Li+144
75"-300"
1905-7620
La
SPZ
10.0
8.0
8.0

40°

La=Li+50
16"-100"
483-2540
La
SPA
13.0
11.0
10.0

40°

La=Li+63
23"-200"
600-5080
La
SPB
17.0
14.0
14.0

40°

La=Li+88
44"-300"
1100-7620
La
SPC
22.0
19.0
18.0

40°

La=Li+113
71"-300"
1800-7620
La
