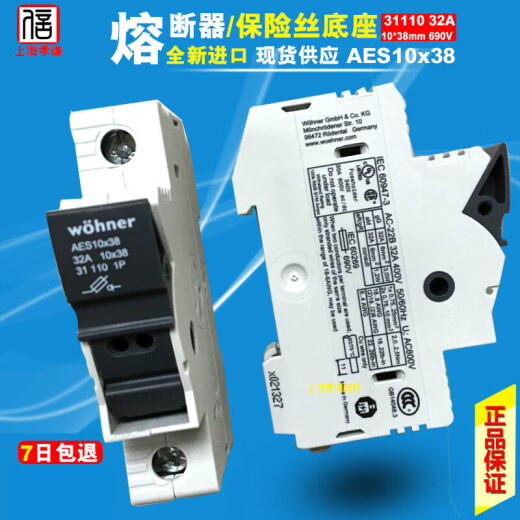

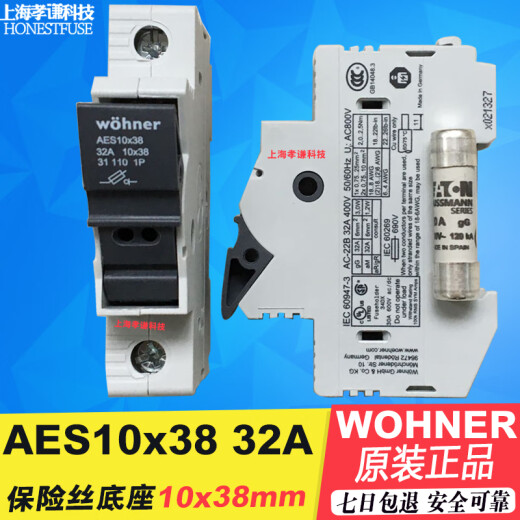

维纳尔WOHNER熔断器开关31110 AES1x38/10x38mm保险丝座690V/32A 1极/1P 690V/32A 10*38mm gL/gG熔

维纳尔WOHNER熔断器开关31110 AES1x38/10x38mm保险丝座690V/32A 1极/1P 690V/32A 10*38mm gL/gG熔
维纳尔WOHNER熔断器开关31110 AES1x38/10x38mm保险丝座690V/32A 1极/1P 690V/32A 10*38mm gL/gG熔
维纳尔WOHNER熔断器开关31110 AES1x38/10x38mm保险丝座690V/32A 1极/1P 690V/32A 10*38mm gL/gG熔
维纳尔WOHNER熔断器开关31110 AES1x38/10x38mm保险丝座690V/32A 1极/1P 690V/32A 10*38mm gL/gG熔
维纳尔WOHNER熔断器开关31110 AES1x38/10x38mm保险丝座690V/32A 1极/1P 690V/32A 10*38mm gL/gG熔
US$13.97
  • Stock: 100
  • Model: 10119420950228
  • Weight: 1.00kg
  • Dimensions: 0.10cm x 0.10cm x 0.10cm
加入购物车
Buy Now
收藏

How to Order & Pay

Shipping: Free Shipping & Customs Tax included are subject to change, please refer to the quote you received.

Delivery: Accurate and precise order tracking. Learn more

Package Safety: Refund for your damaged or lost package. Learn more

Payments:

Shop with confidence

Inspect item by item, verify, conduct quality checks, and upload authentic photos of the products.

Consolidate and repackage all items to reduce international logistics costs and facilitate international transportation.

Our customer service is always here if you need help. Click here to chat with us or Chat on WhatsApp

Please log in to view detailed product descriptions and select product options.

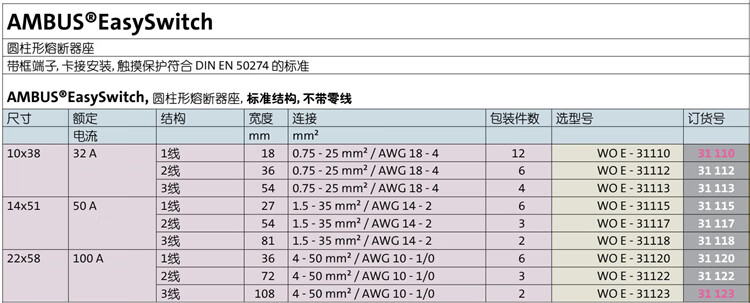

圆柱形熔断器座

品牌：维纳尔wohner

额定电压：690V AC,440V DC

额定电流：32A

结 构：1极

熔芯尺寸：10X38mm

订货型号：31110

规格简要说明:

熔断器底座31110介绍
(1) 圆柱形熔断器隔离开关1P（配10x38圆柱形熔芯）

(2) 额定工作电压AC400V(50Hz)，额定工作电流至32A。

(3) 短路故障时的分断时间短，比微断要快， 有利于保护固态继电器，可控硅等电子器件，
是半导体保护的(配快熔熔芯)

31110产品优势
(1) 短路分断能力高达50kA，比一般微断高很多，有利于保护短路冲击电流大的回路.

(2) 广泛用于保护二次回路，如表计，控制回路及照明回路等。

(3) 已通过3C认证！

使用场合：
重要行业：
1、建筑机械 2、应急电源 3、不间断电源（UPS） 4、玻璃机械 5、纺织机械 6、木材加工机械
7、罐装机械 8、机械 9、建材生产机械 10、气体压缩行业（压缩机生产行业）

其他库存现货

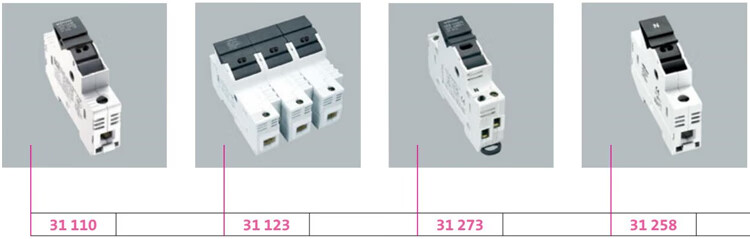

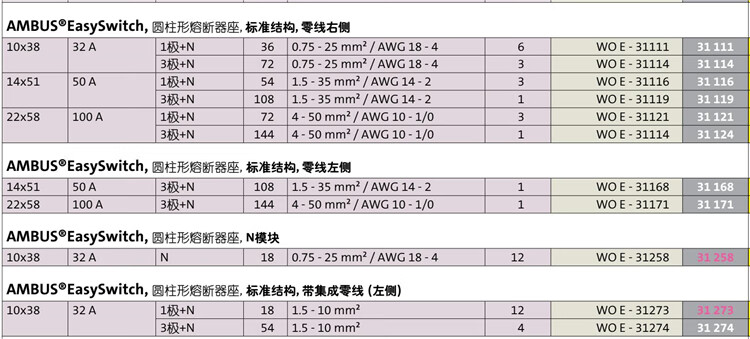

WOEHNER31973WOEHNER 31115WOEHNER 31120WOEHNER 31130WOEHNER 33200.000

WOEHNER 33201.000 WOEHNER 33202.000 WOEHNER 33203.000
